H100/H103 Industrial Scanner with 3mil Precision IP42 Rugged Protection and Ergonomic Design for Harsh Environments

  • 1
  • 2
  • 3

Brand Name : SR

Model Number : H100/H103

Place of Origin : China

MOQ : 10PCS

Price : 13-20usd

Payment Terms : L/C,T/T

Supply Ability : 4000 pcs/day

Delivery Time : 5 working days

Packaging Details : corrugated paper box

Drop Test : 1.2m Steel Plate Drop/6,000×10cm Micro Drops

Drum Test : 300×0.5m Tumbles

Protection Level : IP42

I/O Interfaces : USB/RS232/Button Trigger

Sensor Resolution : 640×480/1280×800

Aiming : LED/Laser

Contact Now

H100/H103 Industrial Scanner | 3mil Precision IP42 Rugged
3mil high-precision scanning + IP42 rugged protection, built for harsh industrial environments, enabling fast and stable data capture. Low power consumption + robust structure, high performance boosts operational efficiency with great practical value.

Superior advanced scanning performance, accurately decodes hard-to-read barcodes such as long, wrinkled and screen barcodes, and achieves error-free decoding for complex symbologies. Ergonomic and lightweight design, ideal for high-frequency scanning scenarios, comfortable to hold for long hours without fatigue, effectively reducing operator strain.
Key Features
  • IP42 protection rating with 1.2-meter drop resistance
  • 3 million cycle keypad durability rating
  • Robust construction for industrial reliability
  • Enhanced scanning efficiency and read quality
  • Compact, ergonomic design for comfortable handling
Technical Specifications
Physical Parameters
Dimensions 166 × 73 × 83mm
Weight 105g
Electrical Parameters
ESD Protection ±8KV (Air)/±4KV (Contact)
Input Voltage 5V
I/O Interfaces USB/RS232/Button Trigger
Performance Parameters
Sensor Resolution 640×480/1280×800
Illumination White Lighting
Aiming LED/Laser
Barcode Resolution Minimum 3mil
Field of View 57.6° (O)/46.6° (H)/36.8° (V)
Barcode Contrast ≥25% Print Contrast
Scan Angles Tilt ±60°/Rotation 360°/Skew ±60°
Reading Indicator LED Light
Reading Range
13mil EAN13 50-230mm
15mil QR Code 30-130mm
Environmental Parameters
Drop Test 1.2m Steel Plate Drop/6,000×10cm Micro Drops
Drum Test 300×0.5m Tumbles
Protection Level IP42
Key Life 3,000,000 Cycles
Ambient Light 0-100,000 lux
Humidity 5%-95%
Temperature Operating -20°C to 50°C / Storage -40°C to 70°C
Decoding Capability
2D Codes UCC Composite/Aztec (8 Types Total)
1D Codes EAN/UPC/GS1 DataBar (16 Types Total)
Postal Codes Australian Post/British Post (10 Types Total)
Stacked Codes EAN/JAN Composites/GS1 DataBar (9 Types Total)
Product Images
H100/H103 Industrial Scanner with 3mil Precision IP42 Rugged Protection and Ergonomic Design for Harsh Environments

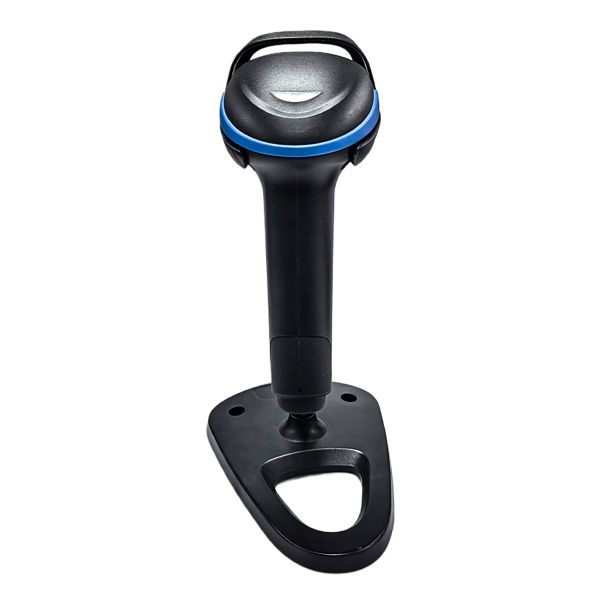

H100/H103 Handheld Barcode Scanner - Front View
