IP42 Ergonomic Handheld Barcode Scanner with 3mil High Resolution for Industrial Data Collection

  • 1
  • 2
  • 3

Brand Name : SR

Model Number : H100/H103

Place of Origin : China

MOQ : 10PCS

Price : 13-20usd

Payment Terms : L/C,T/T

Supply Ability : 4000 pcs/day

Delivery Time : 5 working days

Packaging Details : corrugated paper box

ESD : ±8KV (Air)/±4KV (Contact)

Input Voltage : 5V

Illumination : White Lighting

I/O Interfaces : USB/RS232/Button Trigger

Sensor Resolution : 640×480/1280×800

Aiming : LED/Laser

Protection Level : IP42

Key Life : 3,000,000 Cycles

Ambient Light : 0-100,000lux

Contact Now

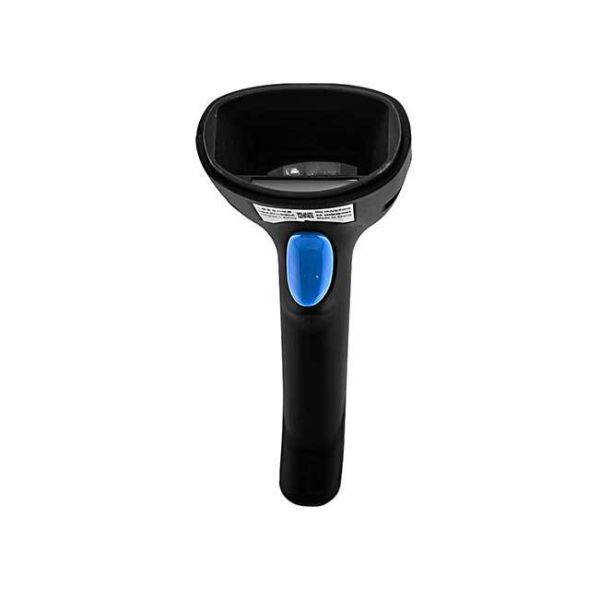

IP42 Ergonomic Handheld Scanner – H100/H103 with 3mil High Resolution
The H100/H103 handheld barcode scanner is purpose-built for efficient cross-industry data collection. Equipped with a low-power, high-performance core, it provides outstanding cost-effectiveness for industrial operations. This scanner enables precise decoding of complex symbologies – such as long barcodes, wrinkled barcodes, large QR codes and screen barcodes – making it perfectly suited for challenging scanning environments across multiple industries.
Key Features
  • IP42 protection level withstands 1.2-meter drops
  • Keypad rated for 3 million cycles
  • Durable and reliable construction
  • Enhances scanning efficiency and quality
Technical Specifications
Category Specifications
Physical Parameters Dimension: 166*73*83mm
Weight: 105g
Electrical Parameters ESD: ±8KV (Air)/±4KV (Contact)
Input Voltage: 5V
I/O Interfaces: USB/RS232/Button Trigger
Performance Parameters Sensor Resolution: 640*480/1280*800
Illumination: White Lighting
Aiming: LED/Laser
Barcode Resolution: Min. 3mil
FOV: 57.6°(O)/46.6°(H)/36.8°(V)
Barcode Contrast: ≥25% Print Contrast
Scan Angles: Tilt ±60°/Rotation 360°/Skew ±60°
Reading Indicator: LED Light
Reading Range 13mil EAN13: 50-230mm
15mil QR Code: 30-130mm
Environmental Parameters Drop Test: 1.2m Steel Plate Drop/6,000*10cm Micro Drops
Drum Test: 300*0.5m Tumbles
Protection Level: IP42
Key Life: 3,000,000 Cycles
Ambient Light: 0-100,000lux
Humidity: 5%-95%
Temperature: Operating -20~50℃/Storage -40~70℃
Decoding Capability 2D Codes: UCC Composite/Aztec (8 Types Total)
1D Codes: EAN/UPC/GS1 DataBar (16 Types Total)
Postal Codes: Australian Post/British Post (10 Types Total)
Stacked Codes: EAN/JAN Composites/GS1 DataBar (9 Types Total)
